| Cameron M Gate Valve Specification |

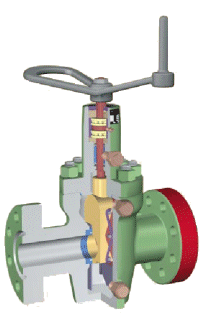

| The Cameron M Gate Valve, with expanding Pow-R-Seal gate design, non-rising stem, and metal-to-metal sealing provides safe, depend- able service in applications of 2000 to 5000 psi WP. It is available in sizes from 2-1/16 in. through 4-1/16 in. with either threaded or flanged ends. The M valve is available in trims for all types of oilfield service, including extreme sour gas.
Features and Benefits
- Metal-to-metal sealing (gate-to-seat and seat-to-body).
- Expanding gate design creates a positive mechanical seal across the seats, with or without line pressure.
- Full-bore, through-conduit gate-to-seat seal maximizes valve life by virtually eliminating turbulence and pressure drop.
- Gate skirts reduce loss of body lubricants.
- Low running stress enhances life of the gate-to-seat interface.
- Upper/lower roller thrust bearings are isolated from well fluid, minimizing torque.
- Stem packing can be re-energized with valve under pressure.
- Non-rising stem permits valve installation in closer quarters.
- Seats, gates, stem, and other working parts are field replaceable.
|
 |
|
|
|
|
