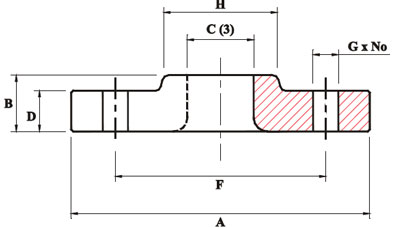

| Lap Joint Flange Specification |
|
Lap-Joint Flanges are similar to Slip_On Flanges, the difference is it has a curved radius at the bore and face to accommodate a lap joint stub end. The lap joint flange and stub end assembly are normally used in systems requiring frequent dismantling for inspection.
|
|
| 150# |
| Branch NB |
A |
B |
C |
D |
E |
F |
G x No. |
H |
I |
Weight KG |
| 1/2" (15) |
89 |
16 |
22.9 |
11,6 |
3 |
60.3 |
15.8 x 4 |
22.2 |
10 |
0.4 |
| 3/4" (20) |
99 |
16 |
28.2 |
13.2 |
3 |
69.8 |
15.8 x 4 |
27.7 |
11 |
0.7 |
| 1" (25) |
108 |
17 |
34.9 |
14.7 |
3 |
79.4 |
15.8 x 4 |
34.5 |
13 |
0.8 |
| 1 1/2" (40) |
127 |
22 |
50.0 |
19.5 |
6 |
98.4 |
15.8 x 4 |
49.2 |
16 |
1.4 |
| 2" (50) |
152 |
25 |
62.5 |
22.7 |
8 |
120.6 |
19.0 x 4 |
61.9 |
17 |
2.2 |
| 3" (80) |
191 |
30 |
91.4 |
24.3 |
10 |
152.4 |
19.0 x 4 |
90.7 |
21 |
4.1 |
.
| 300# |
| Branch NB |
A |
B |
C |
D |
E |
F |
G x No. |
H |
I |
Weight KG |
| 1/2" (15) |
96 |
22 |
22.9 |
14.7 |
3 |
66.7 |
15.8 x 4 |
22.2 |
10 |
0.7 |
| 3/4" (20) |
117 |
25 |
28.2 |
16.3 |
3 |
82.6 |
19.0 x 4 |
27.7 |
11 |
1.1 |
| 1" (25) |
124 |
27 |
34.9 |
17.9 |
3 |
88.9 |
19.0 x 4 |
34.5 |
13 |
1.4 |
| 1 1/2" (40) |
156 |
30 |
50.0 |
21.1 |
6 |
114.3 |
22.2 x 4 |
49.2 |
16 |
2.6 |
| 2" (50) |
165 |
33 |
62.5 |
22.7 |
8 |
127 |
19.0 x 8 |
61.9 |
17 |
3.4 |
| 3" (80) |
210 |
43 |
91.4 |
29 |
10 |
168.3 |
22.2 x 8 |
90.7 |
21 |
6.1 |
.
| 600# |
| Branch NB |
A |
B |
C |
D |
E |
F |
G x No. |
H |
I |
Weight KG |
| 1/2" (15) |
96 |
29 |
22.9 |
21.3 |
3 |
67 |
15.8 x 4 |
22.2 |
10 |
0.8 |
| 3/4" (20) |
117 |
32 |
28.2 |
22.9 |
3 |
83 |
19.0 x 4 |
27.7 |
11 |
1.4 |
| 1" (25) |
124 |
34 |
34.9 |
24.5 |
3 |
89 |
19.0 x 4 |
34.5 |
13 |
1.6 |
| 1 1/2" (40) |
156 |
39 |
50.0 |
29.3 |
6 |
114.3 |
22.2 x 4 |
49.2 |
16 |
3.1 |
| 2" (50) |
165 |
44 |
62.5 |
32.4 |
8 |
127 |
19.0 x 8 |
61.9 |
17 |
3.7 |
| 3" (80) |
210 |
53 |
91.4 |
39.8 |
10 |
168.3 |
22.2 x 8 |
90.7 |
21 |
7.3 |
.
| 900# |
| Branch NB |
A |
B |
C |
D |
E |
F |
G x No. |
H |
I |
Weight KG |
| 1/2" (15) |
121 |
39 |
22.9 |
29.3 |
3 |
82.6 |
22.2 x 4 |
22.2 |
10 |
1.7 |
| 3/4" (20) |
130 |
42 |
28.2 |
32.4 |
3 |
89 |
22.2 x 4 |
27.7 |
11 |
2.3 |
| 1" (25) |
149 |
48 |
34.9 |
35.6 |
3 |
102 |
25.4 x 4 |
34.5 |
13 |
3.4 |
| 1 1/2" (40) |
178 |
51 |
50.0 |
39.8 |
6 |
123.8 |
28.4 x 4 |
49.2 |
16 |
5.4 |
| 2" (50) |
216 |
64 |
62.5 |
45.1 |
8 |
165 |
25.4 x 8 |
61.9 |
17 |
9.8 |
|
| |
| |
Notes:- |
| |
Flanges dimensions to ANSI B16.5. |
| |
Larger Outlet Sizes are available on application. |
| |
|
|
 |
|
|
|
|
