Stainless Steel Flange Specification

We are one of the professional flange manufacturer and stock-holders in India, located in NewDelhi. We manufacture flanges in accordance with specifications adopted and issued by the ASTM, ANSI, ASME, API, MSS and other engineering standard groups. We provide Industrial flanges for the Petrochemical, Process and Water Works Industries. We are supplying flanges in Stainless Steel, Alloy Steel, Carbon Steel & Chrome Steel.

Stainless Steel Flanges supplier from India

Stainless Steel Flanges Exporter from india

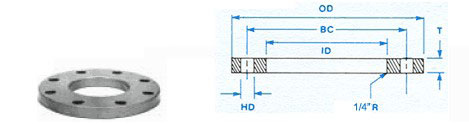

Nominal Pipe Size	DIMENSIONS					Bolts
Nominal Pipe Size	Inside DIA (ID)	Outside DIA (OD)	Thickness (T)	Bolt Circle (BC)	Hole DIA (HD)	No.	Approx weight LBS
1.5	5	2.13	0.5	3.88	0.63	4	2.1
2	6	2.63	0.63	4.75	0.75	4	2.8
2.5	7	3.13	0.63	5.5	0.75	4	4.2
3	7.5	3.75	0.63	6	0.75	4	4.5
4	9	4.75	0.63	7.5	0.75	8	6.7
66	11	7	0.75	9.5	0.88	8	9.5
8	13.5	9	0.75	11.75	0.88	8	12.5
10	16	11.13	0.88	14.25	1	12	19
12	19	13.13	0.88	17	1	12	28
14	21	15	1	18.75	1.13	12	32
16	23.5	17	1	21.25	1.13	16	42
18	25	19	1.13	22.75	1.25	16	50
20	27.5	21	1.13	25	1.25	20	58
24	23	25	1.13	29.5	1.38	20	82
